ICON Stage 2 Adjustable Suspension System - 1.5-3.5 in Lift w/ Tubular UCA | 2019-2023 GMC Sierra 1500
ICON Stage 2 Adjustable Suspension System - 1.5-3.5 in Lift w/ Tubular UCA | 2019-2023 GMC Sierra 1500
Couldn't load pickup availability
The ICON Stage 2 Suspension System fits the 2019-2023 GMC Sierra 1500 and delivers 1.5-3.5in of adjustable front lift with tuned 2.5 Series coilovers and tubular upper control arms.
Product Overview

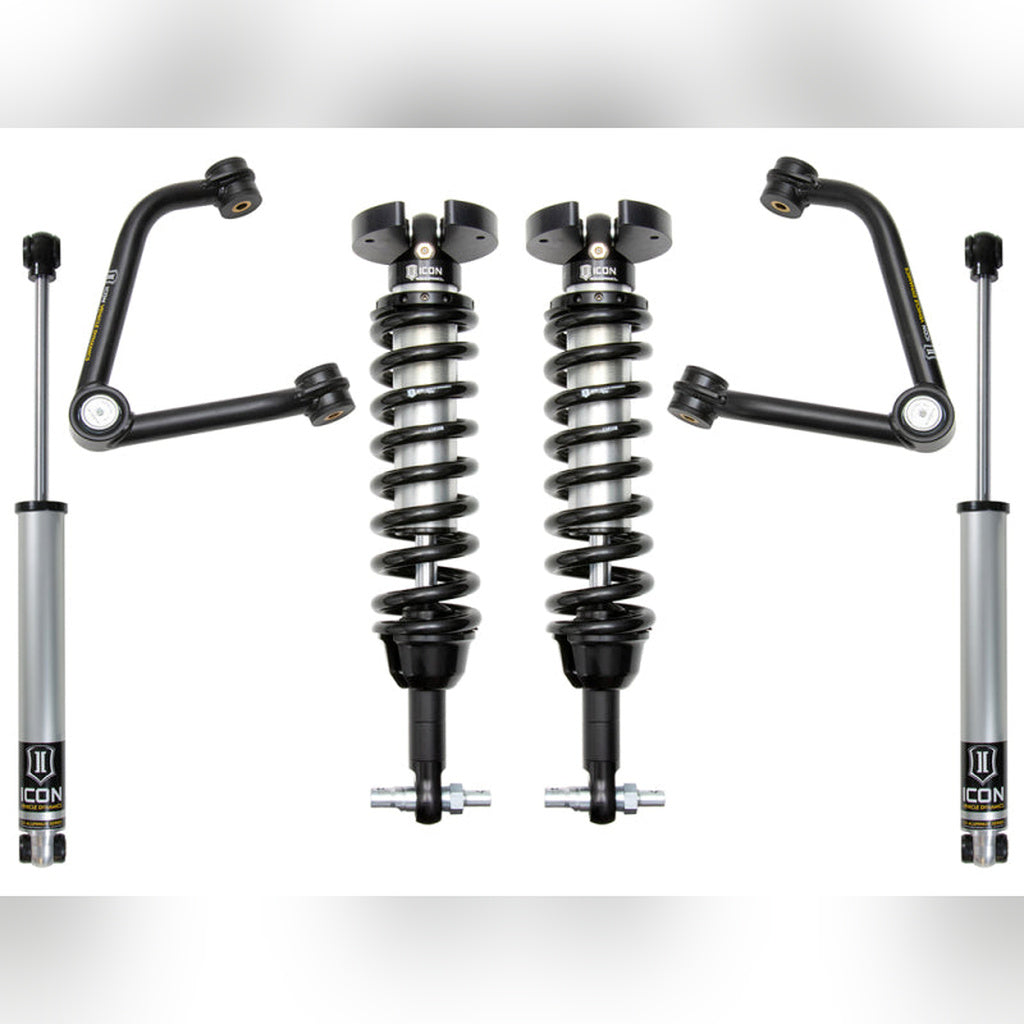

This Stage 2 kit pairs height-adjustable 2.5 Series front coilovers with 2.0 Aluminum Series remote reservoir rear shocks and ICON tubular upper control arms.
The coilovers use ICON-tuned Eibach coil springs and a CAD-plated shock body with a 7/8in shaft. Rear shocks run a 5/8in shaft inside an anodized aluminum body with 7.5in reservoirs.
The result is up to 35% more front wheel travel and balanced damping front-to-rear on the Sierra 1500 T1XX platform, on-road and off.
Features & Specifications
- Fits: 2019-2023 GMC Sierra 1500
- Provides 1.5-3.5in front lift via adjustable coilovers
- 2.5 Series front coilovers with 7/8in shaft and CAD-plated body
- 2.0 Aluminum Series rear shocks with 5/8in shaft
- 7.5in aluminum remote reservoirs for consistent damping
- Tubular upper control arms with patented Delta Joint (U.S. Pat. 10,731,700)
- FK Rod End bearings for minimal deflection
- Up to 35% increase in front wheel travel over stock
- Fully rebuildable and revalvable shocks
- Fits 2WD and 4WD applications
Fitment
This part fits the following vehicles:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2019-2023 | GMC | Sierra 1500 | AT4 |
| 2019-2021 | GMC | Sierra 1500 | Base |
| 2019-2021 | GMC | Sierra 1500 | Denali |
| 2019-2023 | GMC | Sierra 1500 | Elevation |
| 2022-2023 | GMC | Sierra 1500 | Pro |
| 2019-2023 | GMC | Sierra 1500 | SLE |
| 2019-2023 | GMC | Sierra 1500 | SLT |
| 2022 | GMC | Sierra 1500 Limited | AT4 |
| 2022 | GMC | Sierra 1500 Limited | Denali |
| 2022 | GMC | Sierra 1500 Limited | Elevation |
| 2022 | GMC | Sierra 1500 Limited | Pro |
| 2022 | GMC | Sierra 1500 Limited | SLE |
| 2022 | GMC | Sierra 1500 Limited | SLT |
